Jasmin's CUBOTino Project

Step 2 - Order the CUBOTino connection board

For the Raspberry Pi connection board, Chad (Vanblokland) has created and provided the Gerber files to order the board from a board manufacturer. Only the few components required then need to be soldered onto the board received. This makes assembly much easier and ensures that all connections are correct and reliable. The carefully designed Gerber files ensure that the board is optimally matched to the Raspberry Pi and supports all the necessary connections and functions.

Order PCB board via JLCPCB

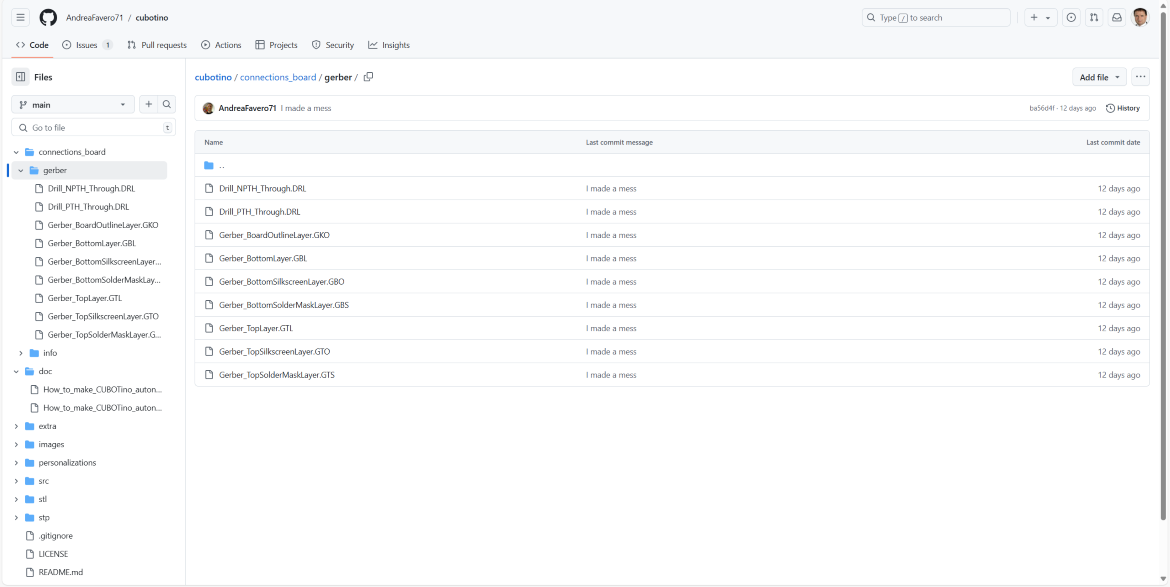

1. Download Gerber Files from GitHub Repository AndreaFavero71 cubotino

   Gerber Files Download Gerber Files from GitHub Repository AndreaFavero71 cubotino.

2. Zip all Files from the \gerber folder into one Zip File «cubertino.zip».

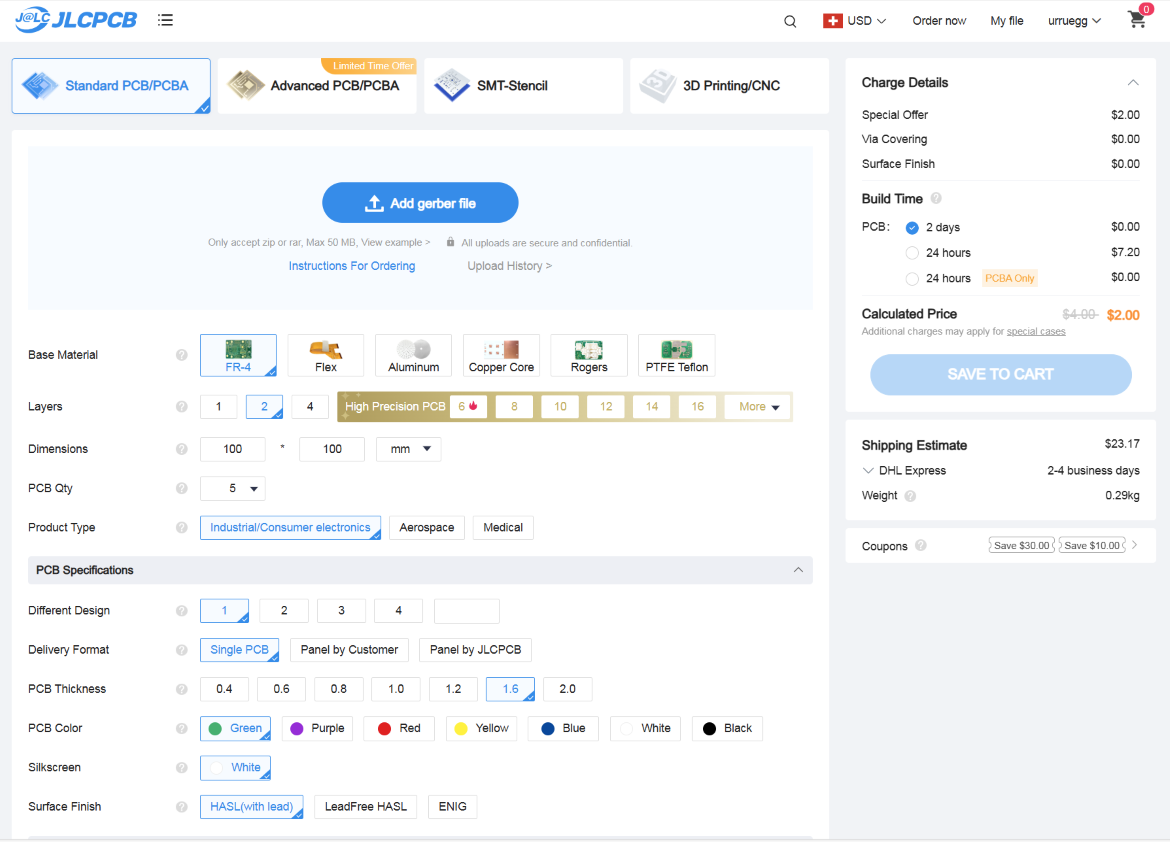

3. Open the JLCPCB Website https://jlcpcb.com , Login and select order now to create a new order.

   JLCPCB Website Open the JLCPCB Website. Login and select order now to create a new order.

4. Add gerber files (Zip File «cubertino.zip»).

   Add Gerber Files Add gerber files (Zip File «cubertino.zip»)

5. Save to cart and within 2-4 business days you receive the board

CUBOTino connection board

Below the top and bottom view of the ordered connection board

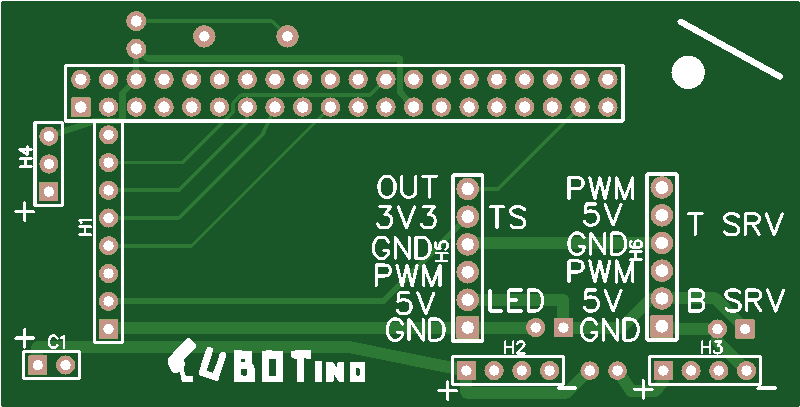

CUBOTino Connection Board Top View

Connection Board CUBOTino Connection Board Top View

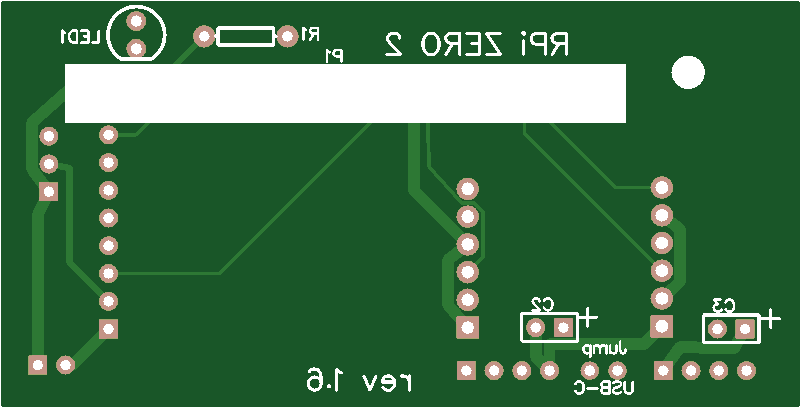

CUBOTino Connection Board Bottom View

Connection Board CUBOTino Connection Board Bottom View

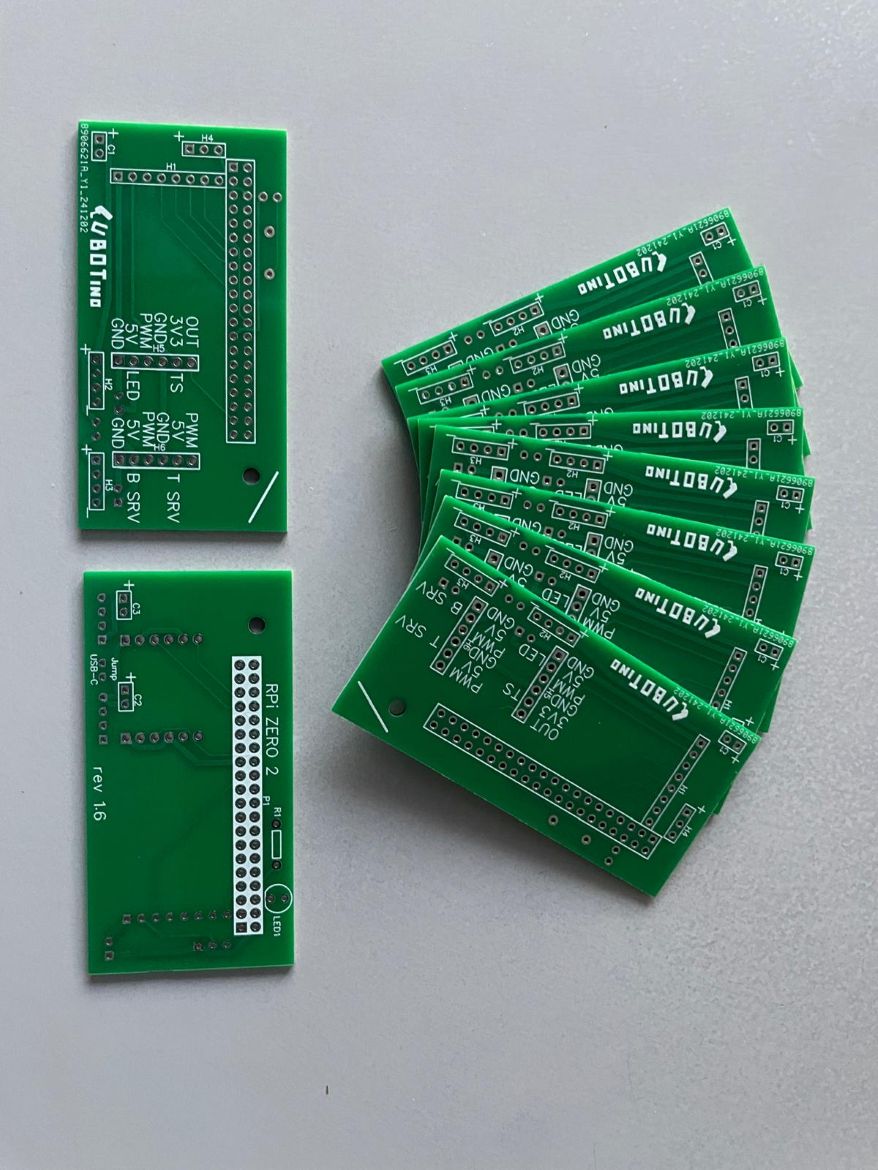

And finally we received the ordered connection board within 5 days

Connection Board JLCPCB CUBOTino Connection Board

Special thanks to Andrea Favero, inventor of the CUPERTino Makers project. Chad Vanblokland, inventor of the CUBERTino Connection Board and for sharing the Gerber files to order it.

---

6. Dec 2024
